    3-9X42IR Illuminated Reticle Long Range Hunting Scopes For Crossbow

    Ask Lasest Price
    Brand Name : C-H
    Model Number : SFS012
    Certification : CE ROHS
    Supply Ability : 3000/MONTH
    Delivery Time : 3-15DAYS
    • Product Details
    • Company Profile

    3-9X42IR Illuminated Reticle Long Range Hunting Scopes For Crossbow

    Dual illuminated Reticle 3-9X42IR Compat Long Range Hunting Scopes For Crossbow


    Dual illuminated Reticle 3-9X42IR Compat Long Range Hunting Scopes For Crossbow with Europe Reticle is professional crossbow scope


    Features


    30 mm monotube

    Red and Green illumination

    Glass etched figure Reticle

    Fully coated


    ​Specification


    Item Name3-9x40Long Range Hunting Scopes
    Item NoSFS012
    Magnication3-9
    Ocular Size42mm(external diameter )
    Primary Obj42MM
    Tube Dia30MM
    Total Length26CM
    Weight:480G
    Mounting Length10CM
    Eye Relief70-90MM
    FOV(ft @100yds)8-48
    Diopter± 2
    Click Value0.1MIL
    IlluminationR./G
    Reticle:Cross bow glass reticle


    ​Specification of other Crossbow scopes


    Requirement1.5-5x322-7x322.5-10x42
    Magnification Low1.522.5
    Magnification High5710
    Objective diameter323232
    Maintube diameter303030
    Eyepiece Field of view21.521.521.5
    Diopter range +/-222
    Exit Pupil Distance (mm)808080
    Standard Klick value for E/W (MOA)0.50.50.5
    Total travel elevation (@ 30 yds)≥ 90MOA≥ 90MOA≥ 80MOA
    Total travel windage (@ 30 yds)≥ 90MOA≥ 90MOA≥ 80MOA
    Parallax Compensation30yds30yds100yds
    Sealing gas usedNitrogenNitrogenNitrogen
    Clear aperture min magnification (mm)27.527.5237.84
    Clear aperture max magnification (mm)243244
    Eff. exit pupil diameter @ min. magnification ± 3 %22.917.215.136
    Eff. exit pupil diameter @ max. magnification ± 3 %4.85.75.5
    Maximum resolution in Arc. Second (min. Magnification)555
    Maximum resolution in Arc. Second (max. Magnification)555
    Weight (g)368g395g480g
    Length(mm)185mm245mm260mm

    Pack List


    1X brand new 3-9x40Long Range Hunting Scopes

    1x Plastic Wrench

    1XCleaning cloth

    1xCR2032 Battery

    1X Operating manual

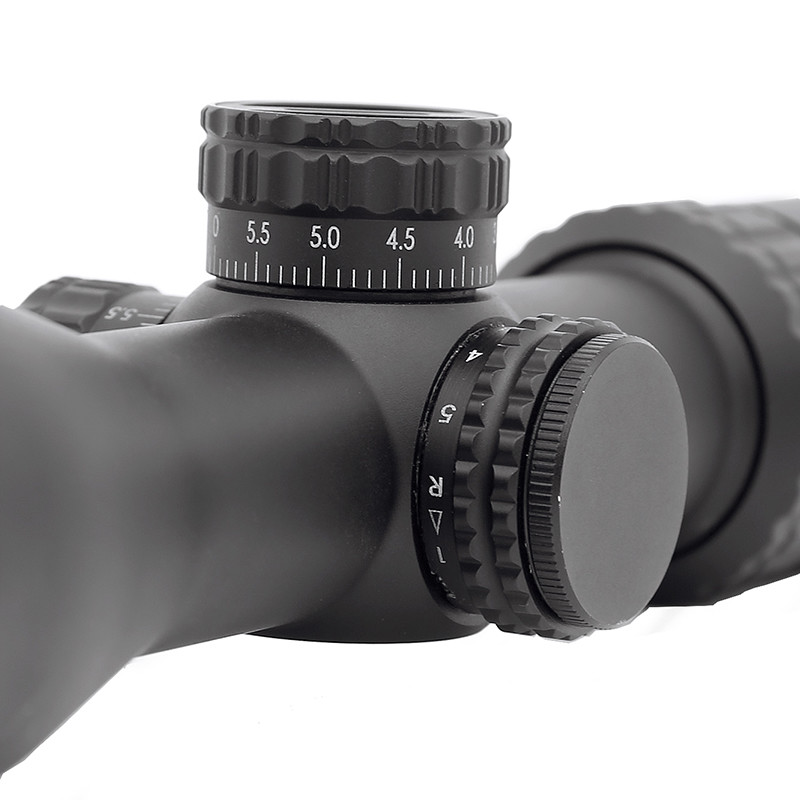

    Product PIcture


    3-9X42IR Illuminated Reticle Long Range Hunting Scopes For Crossbow3-9X42IR Illuminated Reticle Long Range Hunting Scopes For Crossbow3-9X42IR Illuminated Reticle Long Range Hunting Scopes For Crossbow3-9X42IR Illuminated Reticle Long Range Hunting Scopes For Crossbow3-9X42IR Illuminated Reticle Long Range Hunting Scopes For Crossbow
