FH25R Handheld Thermal Imaging Scope Monocular With Rangefinder for
Hunting
FH25R Handheld Thermal Imaging Scope Monocular With Rangefinder for
Hunting can be used in hunting and safety
Feature
The Finder series products are light and easy to carry, especially
suitable for one-handed operation that can be put in a pocket
anytime and anywhere. The compact design and built-in laser
rangerfinder makes the Finder the best choice for outdoor
investigation.
High Image Quality
The advanced image processing ability of the InfiRay detector,
which has high performance electronics and optimized infrared
optics, creates excellent image clarity and provides better
detection and classification, both in day and night.
12 µm Thermal Imaging Sensor
High performance 12 μm pixel pitch detectors are embedded. Powerful
objective lens in combination with a 12 µm professional grade
thermal imaging sensor provides exceptional detection capabilities.
A standard 1,7 m (5.58 ft) tall object can be detected at a 1300 m
(1420 yds) distance in complete darkness.Long Detection Range 1298 m
The powerful objective lens combined with a 12 μm professional
grade thermal imaging sensor provides exceptional detection
capabilities.High Image Frequency 50 Hz
The 50 Hz refresh rate guarantees that you will capture every
moment that you are interested in
.HD Micro Display
1280×960 high-resolution internal display offers sharp image and
vivid colors.
Integrated Laser Rangefinder (LRF) 600m
The Finder series has a built-in laser ranging module, which helps
to quickly and accurately capture and display the target distance.
The ranging accuracy is ± 1 m and the maximum ranging distance is
600 m. Accurate distance readings help to quickly assess the size
of territory, distance and relief. Integrated, precision laser
rangefinder provides accurate rangefinding, it provides both single
ranging and continuous ranging modes. Continuous ranging can be
quickly activated to adapt to the constantly changing distance of
the observed object.
Pocket Machine
Low power elements used in Eye Series provide sufficient operation
time. Up to 15 hours operational battery life guarantees you
don't have to worry about the power supply.
Infrared Sensor Switch
By sensing the reflection, the infrared sensor switch control the
display on and off automatically which saves power and extends the
device's operation time. It also has the advantage of high
sensitivity, strong anti-interference ability and stable working
performance.
Built-in Video Recorder and WiFi Connection
With built-in storage space , Finder series support to save the
interesting moments in the form of photos or video for sharing with
colleagues, friends and family. It can store many hours of recorded
video and tens of photos.
App Supported
Built in Wi-Fi module provides connectivity of Finder with Android
or iOS smartphones or tablets. The smartphone and thermal imager
combination offers a set of unique features such as direct image
streaming, downloading and sharing recorded files, firmware.
Built-in Accelerometer and Digital Compass
Built-in accelerometer and digital compass improves accuracy by
precisely identifying cant and angles.
Specification
FH25R Handheld Thermal Imaging Scope Monocular
| Model | FL25R | FH25R |
| Pixel size | 12um |
| Frame rate | 50Hz |
| NETD | <40mk |
| Objetive lens | 25mm |
| FOV | 10.5x7.9 degrees | 17.5x14.0 degrees |
| Optical magnification | 2.5~10.0 x | 1.5~6.0 x |
| Digital zoom | x1/x1.5/x2/x2. /x3 /x3.5 x4 |
| Exit pupil diameter | 20mm |
| Focusing range of eyepiece | -4D~+5D |
| Resolution | 1280x960 LCOS |
| Battery type | Li-ion |
| Max. battery life (t=25℃) | 6h |
| Laser rangefinder range | 600m |
| Amount of built-in memory | 16Gb |
| APP compatibility | Support |
| Dimension | 70x52x130mm |
| Weight(without replaceable battery) | 320g |
Detection Range,
(Target size:1.7m×0.5m, P(n)=99%) | 1298m |

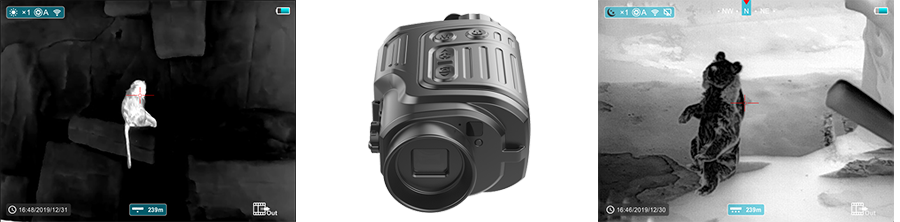

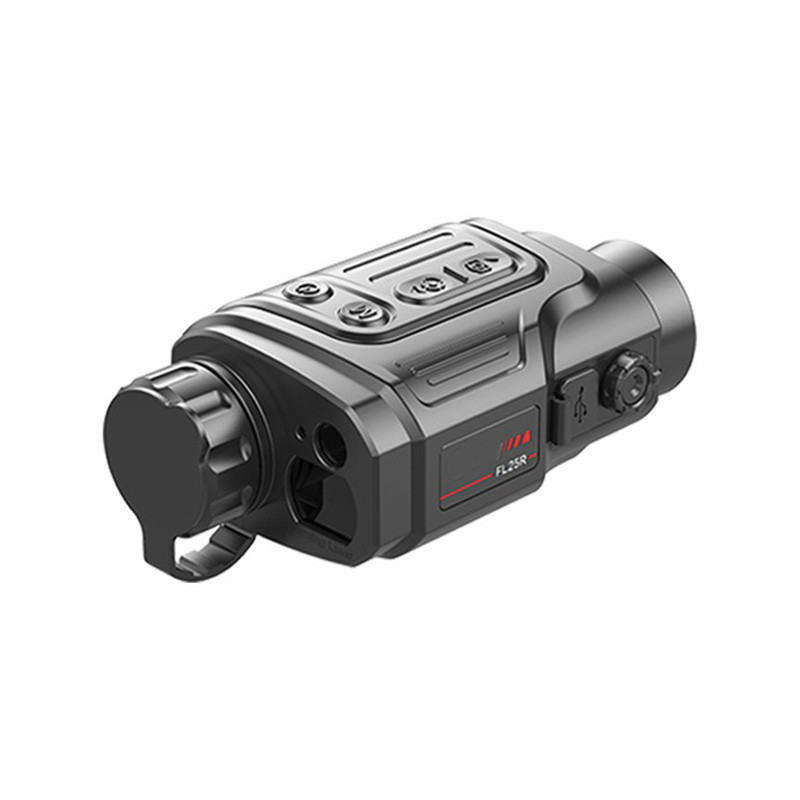

Product Picture
